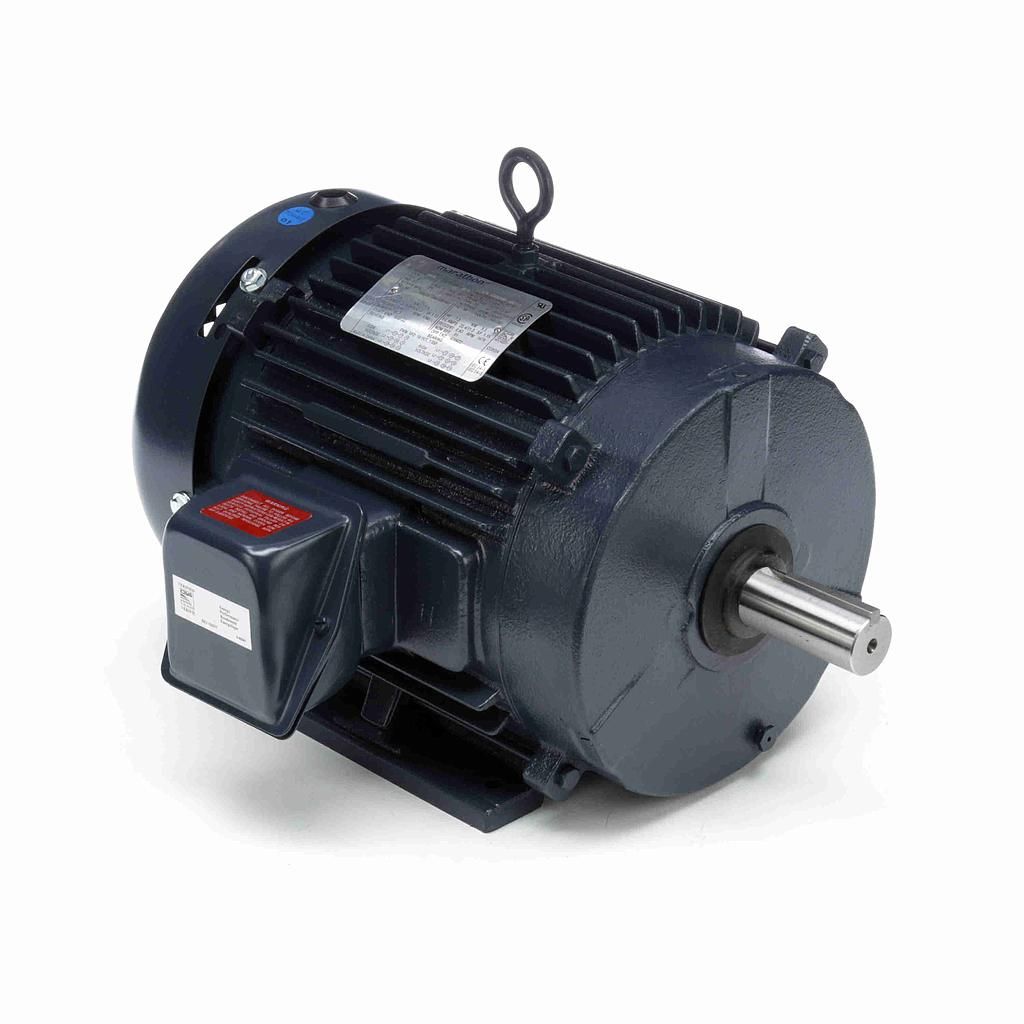

E354V1, AO Smith, 10HP, 208-230/460V, 10HP, 230/460V, 3 Phase Motor

E354V1, AO Smith, 10HP, 208-230/460V, 10HP, 230/460V, 3 Phase Motor

946.29 946.29 946.29 USD

946.29

Add to Cart

E354V1 has been replaced by Marathon with an updated motor. IN STOCK / READY TO SHIP

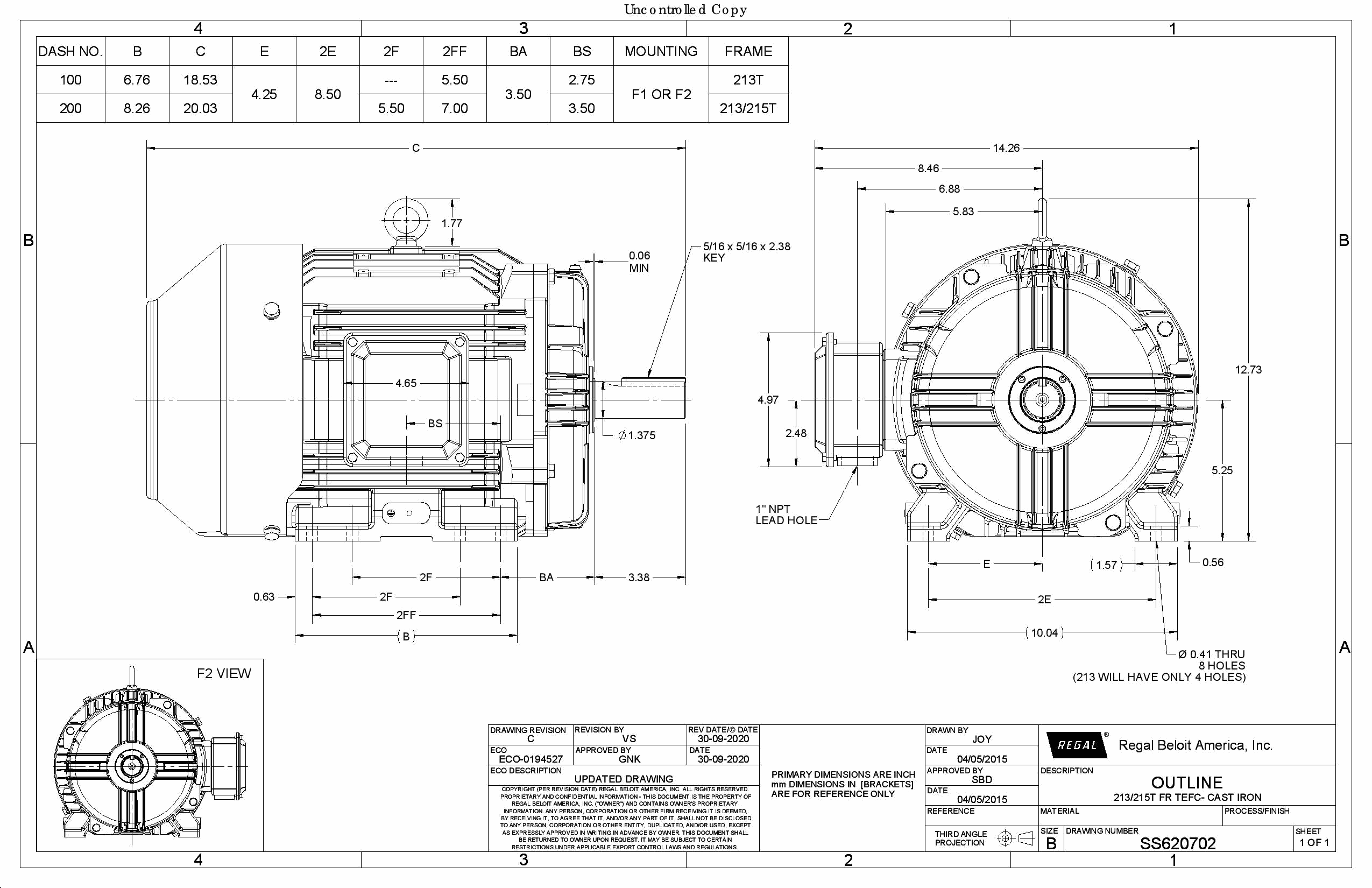

*Verify with specs and drawing for same fit and function

Phase 3
Frame 215T
HP 10
Kilowatts 7.5
Speeds 1
Enclosure TEFC
Current (amps) 25.0/12.5
Voltage 230/460
RPM 1762
Rotation (SE) Reversible
Frequency (hz) 60/50
Bearings (DE/ODE) Ball/Ball
Overload Protection No
Service Factor 1.15
Material Cast Iron
Efficiency 92.1


We know you need it FAST. We ship from several warehouses strategically located across the U.S.: CA,CT,FL,IL,MN,MD,MI,MO,NC,TN,TX. We strive to ship same day.

We also take orders over the phone: (603) 413-0404   or fulfill quotes via email, send to backoffice@tek4ufast.com.

We process orders until , shipping from the West Coast after .

We offer Next Day Air - call for details.

E354V1 Replacement Motor
